We tend to think of all open robes of the 1680s to early eighteenth century as “mantua” or “manteau.” However there are at least two documentable pattern types to over gowns of this era.
The mantua as often described is a garment with a very unique construction. It puts all the side skirt shaping on a single wedge of fabric, made of several widths of fabric, entirely in line with the front panels. The angled top edge lined up with the side of the back, the short piece (with the grain) in line with the front. This leaves the bottom of the piece to the hem that keeps the grain perpendicular to the floor no matter how long the train becomes.
To create my own pattern I collected and redrew every pattern of an extant garment published and to the same scale (1/4) then overlaid them to understand the interplay between each pattern piece. I ignored facings, cuffs, and petticoats and focused on the over garments.
All current “mantua” patterns overlaid to show the proportions of each.
Pattern type 1
A traditional method of dividing the side fullness between the front and back can be seen in the patterns of Albayzeta from 1720. Included are several “ropa de levantar.”
This pattern is for a garment with a very long train, though there is also a secondary hemline drawn where the skirt back would just touch the ground- most of the patterns for “rope de levantar of this book are of the shorter type.
Of the extant garments that have been patterned the Danish gown most closely resembles this. It’s possible to find the parallel seams joining fabric widths as well as a seam between the two diagonal sides.
The skirt is narrow and is worn with a very solid and full underskirt. This arrangement could mean the best display of the brocade pattern was at the side back.
Pattern type 3
Of the mantua type we are left with several garments in both English and American museums all with the wedge shaped piece matched to the front..
The earliest example appears to be the Kimberley gown held at the Metropolitan Museum in New York. The earliest date appears to be 1695.
This garment has been pattern by both Nora Waugh and Blanche Payne, they differ slightly but the principle is the same and in both patterns the side fullness is entirely in line with the front panel.
I have divided the pattern so that the shapes can be compared more easily to the other garments- this garment has the sleeves cut with the body. The pattern can be easily put back as the dividing lines are the only diagonal lines in the draft.
Of special interest is the length of the front of the mantua. It is quite short (see image of overlaid pattern drafts.). Holme confirms that this is a common feature of mantua.
“A mantua is a kind of loose Coat without stayes [sic] in it, the Body part and Sleeves are of many fashions as i have mentioned in the Gown Body; but the skirt is sometimes no longer than the Knees, others have them down to the Heels. The short skirt is open before, and behind to the middle.”
This next garment from 1720-1730 and is housed at the Museum of London and patterned by Zillah Halls in Women’s Costumes 1600-1750: London Museum. This garment is not currently digitised or on display.

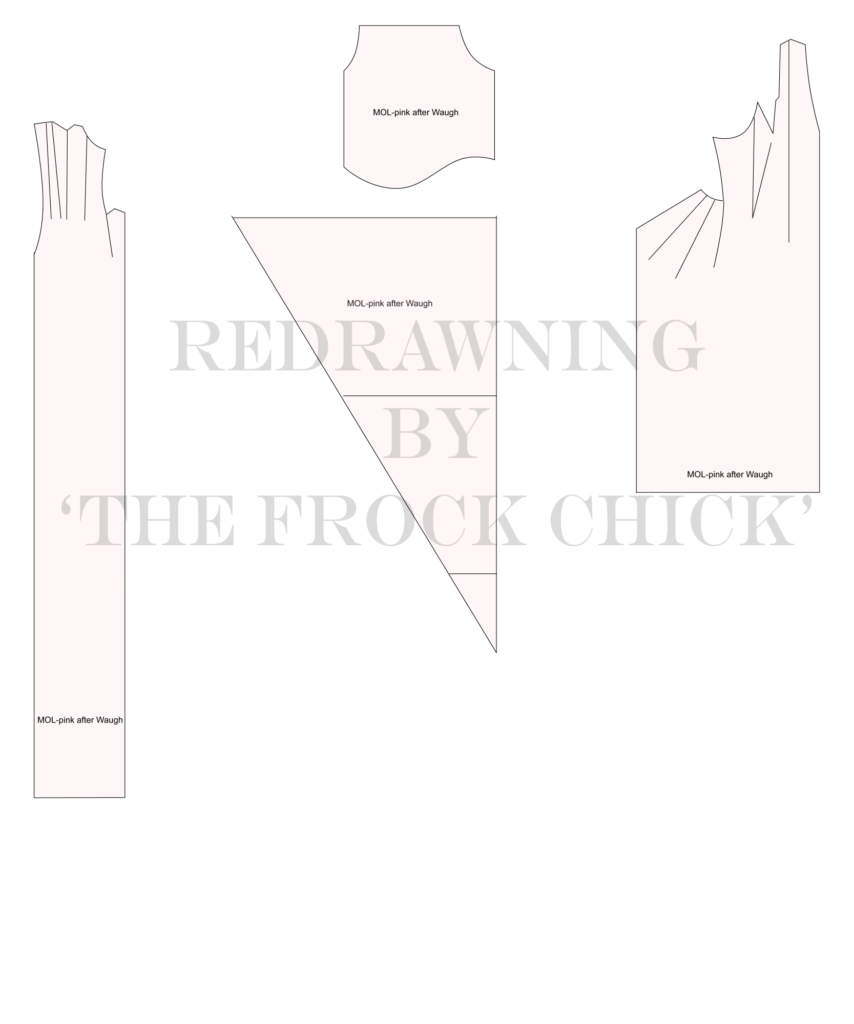

Another garment at the Museum of London was patterned by Nora Waugh, but not photographed. It is from 1735-1745 and uses the same construction. The train has been pinned up to the waist in the illustration but the pattern does not indicate any change in the construction.
These are unfortunately the only garments with patterns I have been able to find but there are several more that have been catalogued and the skirt layout captured in photographs.
Manteau without patterns
The Metropolitan Museum has another early mantua example and the photographs do suggest the construction is of a kind- comparing the alignment of the pattern to the outside of the side back join in fabric shows it is in line with the hem not the seam.
Mantua Date: ca. 1708 Culture: British Medium: silk, metal Credit Line: Purchase, Rogers Fund, Isabel Shults Fund and Irene Lewisohn Bequest, 1991 Accession Number:1991.6.1a, bhttps://www.metmuseum.org/art/collection/search/81809
A mantua in the Victoria & Albert Museum in London has been dated to 1733-1740 based on fabric (earlier date) and cut (later date). This gown has been photographed to show the construction of the skirt. This photo shows the brocade has been reversed from below hip level of the back panels and most of the side panels. This is so that only the face of the brocade is seen when worn and pinned in place.
Mantua Place of origin: Spitalfields (probably, woven) Great Britain (made) Date: 1733-1734 (woven) 1735-1740 (made) Artist/Maker: Unknown Materials and Techniques: Brocaded silk, hand-sewn with spun silk and spun threads, lined with linen, brown paper lining for cuffs, brass, canvas and pleated silk Credit Line: Given by Gladys Windsor Fry Museum number: T.324&A-1985http://collections.vam.ac.uk/item/O71872/mantua-unknown/
The Lincolnshire Mantua has been dated to 1735 based on the fabric and over all pattern pieces. This particular mantua has the train and most side panels reversed so that when pinned for display only the face of the brocade is seen.
Mantua dated after these examples can be recognised by the folding of the train which follows the folding of the Lincoln mantua and the floral brocades mantua in the V&A as above.
One of the earliest is a blue silk mantua at the Victoria and Albert museum. From the 1720s it retains the extra length in the train despite being pinned up.
Place of origin: Spitalfields (textile, weaving) England (mantua, sewing) Date: ca. 1720 (weaving) 1720-1730 (sewing) Artist/Maker: Unknown Materials and Techniques: Silk, silk thread, silver-gilt thread; hand-woven brocading, hand-sewn. Museum number: T.88 to C-19788http://collections.vam.ac.uk/item/O13810/mantua-unknown/
A brown brocaded silk mantua is also of this earlier type and is dated to 1732-1740.
Place of origin: Spitalfields (textile, weaving) Great Britain (ensemble, sewing) Date: ca. 1732 (weaving) 1735-1740 (sewing) 1870 – 1910 (altered) Artist/Maker: Unknown Materials and Techniques: Silk, silk thread; hand-woven brocade, hand sewn Museum number: T.9&A-1971http://collections.vam.ac.uk/item/O71535/mantua-unknown/
Other garments described as mantua are harder to confirm from the photos.
The earliest is held at the Los Angeles County Museum of Art with a date of 1700. It is perhaps the most stunning example of its kind. A deep rich blue silk satin, the petticoat completely covered in metal embroidery, the sleeves and stomacher ditto, only the train seems to be more sparsely covered.
Woman’s Dress (Mantua) with Stomacher and Petticoat Italy, circa 1700 Costumes; principal attire (entire body) Silk satin with metallic-thread embroidery Center back length (Dress): 67 in. (170.18 cm) Length (Stomacher): 16 1/4 in. (41.28 cm) Center back length (Petticoat): 41 3/4 in. (106.05 cm) Costume Council Fund (M.88.39a-c)https://collections.lacma.org/node/170609
A pale blue damask(?) mantua is held at the Manchester Art Gallery and appears to also be sewn so as to allow the face of the brocade to always be arranged outwards.
Another blue and silver mantua is held at the Kyoto Costume Institute and again has skirt panels reversed so as to always display the face of the brocade.
Dress (Mantua) 1740-50s – England Material Blue silk taffeta brocade with botanical pattern, buttons to tack train; matching petticoat. Dimension Length from the hips 183cm (Train) Inventory Number(s) AC10788 2002-29ABhttps://www.kci.or.jp/en/archives/digital_archives/1700s_1750s/KCI_007
This following garment has been dated to the 1750s I believe it is somewhat earlier. The skirt as displayed does not fit well suggesting it was not worn over wide hoops. The train has been folded and appears to show the fabric has been reversed in a similar manner to the above folded mantua trains. So it could be 1720-1740.
A COURT MANTUA OF CHINESE IMPERIAL YELLOW SILK DAMASK, THE SILK CIRCA 1740, THE MANTUA 1750S the bodice with long sweeping train of elaborately folded damask buttoning in swags onto two silk covered buttons at the small of the back, the bodice re pleated as a closed robe, the petticoats re-strung, shown here worn with a stomacher which is part of lot 141
